Wire Rope for Long-term Mooring

Details

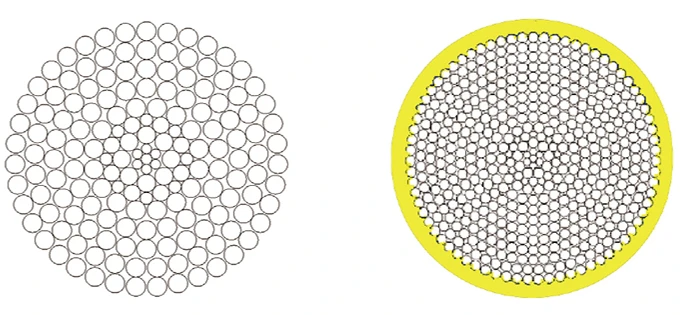

Class: Spiral Strand Steel Wire

RopeConstruction: With Sleeve

Without SleeveUse: Long-term mooring of offshore structures. The service lifeis 7-15 years without sleeve, and 15-30 years with sleeve.

Nominal diameter (mm)	Unit Weight (kg/m)			Minimum breaking load (kN)		Thickness of sleeve (mm)	Axial stiffness at 20%Fo pulls MN	Metallic area ( mm2)
	Without Sleeve	With Sleeve	In seawater	ClassI	Class IlI
	In the air		In seawater
70	25.1	27.17	21.02	4691	4956	8	482	3012
72	26.7	28.81	22.39	4977	5258	8	511	3195
74	27.84	30	23.35	5189	5482	8	533	331
76	29.13	31.35	24.4	5427	5734	8	557	3484
78	31.03	33.29	25.96	5779	6105	8	594	3710
80	32.64	34.97	27.33	6069	6412	8	623	3896
82	33.91	36.27	28.41	6300	6656	8	647	4045
84	35.65	38.06	29.88	6614	6988	8	679	4246
86	37.16	39.64	31.13	6895	7285	8	708	4427
88	39.26	41.79	32.85	7274	7685	8	747	4670
90	41.16	44.42	34.43	7630	8061	10	784	4899
92	42.89	46.22	35.87	7948	8397	10	806	5103
94	44.86	48.25	37.53	8304	8773	10	842	5331
96	46.5	49.95	38.89	8603	9089	10	873	5523
98	48.21	51.72	40.36	8930	9435	10	906	5733
100	50.52	54.47	42.22	9344	9872	11	948	5999
103	53.32	57.37	44.56	9871	10429	11	1001	6337
106	56.94	61.11	47.59	10510	11104	11	1066	6748
109	59.71	63.97	49.89	11034	11657	11	1120	7087
112	63.63	68.02	53.19	11747	12411	11	1192	7542
115	66.62	81.1	65.69	12306	13001	11	1248	7901
118	71.05	75.67	59.38	13113	13854	11	1331	8422
122	75.76	80.52	63.34	13969	14758	11	1417	8969
127	81.58	86.51	68.22	15033	15882	11	1496	9651
130	85.72	90.77	71.67	15806	16699	11	1573	10147
133	89.23	94.38	74.62	16444	17373	11	1636	10557
138	95.62	101	79.99	17200	17700	11	1749	11281
140	99.15	104.5	83	18300	18900	11	1825	11775
144	104.9	110.4	87.71	19300	2000	11	1926	12423
Note:Specialdesigncanbemadeacordingtotherequirementoftheproject.
