Details
Class: single strand wire rope

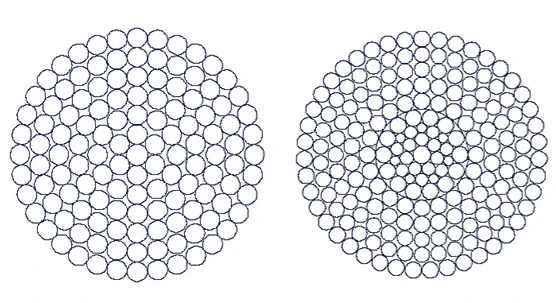

Construction: 1x127/1x631
Application: Structural parts for stadium, suspensioncables, components for tension structure, cableways, etc.
| Nominal diameter (mm) | approximate nominal linear mass(kg/100m） | Nominal sectional area (mm2) | Wire rope grade | ||
| 1570 | 1670 | 1770 | |||
| Minimum breaking load (kN) | |||||
| 50 | 1200 | 1450 | 2000 | 2130 | 2260 |
| 51 | 1250 | 1510 | 2090 | 2220 | 2350 |
| 52 | 1300 | 1570 | 2170 | 2300 | 2440 |
| 54 | 1400 | 1690 | 2340 | 2480 | 2640 |
| 56 | 1510 | 1820 | 2510 | 2670 | 2840 |
| 57 | 1570 | 1890 | 2610 | 2770 | 2940 |
| 58 | 1620 | 1950 | 2700 | 2870 | 3040 |
| 60 | 1730 | 2090 | 2890 | 3070 | 3250 |
| 62 | 1850 | 2230 | 3080 | 3270 | 3480 |
| 64 | 1970 | 2380 | 3280 | 3490 | 3700 |
| 66 | 2100 | 2530 | 3490 | 3710 | 3940 |
| 67 | 2160 | 2610 | 3600 | 3820 | 4060 |
| 68 | 2230 | 2680 | 3710 | 3940 | 4180 |
| 70 | 2360 | 2840 | 3930 | 4170 | 4430 |
| 71 | 2430 | 2930 | 4040 | 4290 | 4560 |
| 72 | 2500 | 3010 | 4160 | 4420 | 4690 |
| 74 | 2640 | 3180 | 4390 | 4660 | 4950 |
| 76 | 2780 | 3350 | 4630 | 4920 | 5220 |
| 77 | 2860 | 3440 | 4750 | 5050 | 5360 |
| 78 | 2930 | 3530 | 4880 | 5180 | 5500 |
| 80 | 3080 | 3710 | 5130 | 5450 | 5790 |
| 82 | 3240 | 3900 | 5390 | 5730 | 6080 |
| 83 | 3320 | 4000 | 5520 | 5870 | 6230 |
| 84 | 3400 | 4100 | 5660 | 6010 | 6380 |
| 86 | 3560 | 4290 | 5930 | 6300 | 6690 |
| 87 | 3650 | 4390 | 6070 | 6450 | 6840 |
| 88 | 3730 | 4490 | 6210 | 6600 | 7000 |
| 90 | 3900 | 4700 | 6500 | 6900 | 7320 |
| 92 | 4080 | 4910 | 6790 | 7210 | 7650 |
| 94 | 4260 | 5130 | 7090 | 7530 | 7990 |
| 96 | 440 | 5350 | 7390 | 7850 | 8330 |
| 98 | 4630 | 5570 | 770 | 8180 | 8680 |
| 100 | 4820 | 5800 | 8020 | 8520 | 9040 |
| 102 | 5010 | 6040 | 8340 | 8860 | 9410 |
| 103 | 5110 | 6160 | 8510 | 9040 | 9590 |
| 104 | 5210 | 6280 | 8670 | 9210 | 9780 |
| 106 | 5410 | 6520 | 9010 | 9570 | 10200 |
| 108 | 5620 | 6770 | 9350 | 9930 | 10500 |
| 109 | 5720 | 6900 | 9530 | 10100 | 10700 |
| 110 | 5830 | 7020 | 9700 | 10300 | 10900 |
| 112 | 6040 | 7280 | 10100 | 10700 | 11300 |
| 114 | 6260 | 7540 | 10400 | 1110 | 11700 |
| 115 | 6370 | 7680 | 10600 | 11300 | 12000 |
| 116 | 6480 | 7810 | 10800 | 11500 | 12200 |
| 118 | 6710 | 8080 | 11200 | 11900 | 12600 |
| 120 | 6940 | 8360 | 11500 | 12300 | 13000 |
| 122 | 7170 | 8640 | 11900 | 12700 | 13500 |
| 124 | 7410 | 8920 | 12300 | 13100 | 13900 |
| 126 | 7650 | 9210 | 12700 | 13500 | 14400 |
| 128 | 7890 | 9510 | 13100 | 14000 | 14800 |
| 130 | 8140 | 9810 | 13600 | 14400 | 15300 |
| 132 | 8390 | 10100 | 14000 | 14800 | 15800 |
| 134 | 8650 | 10400 | 14400 | 15300 | 16200 |
| 135 | 8780 | 10600 | 14600 | 15500 | 16500 |
| 136 | 8910 | 10700 | 14800 | 15800 | 16700 |
| 138 | 9170 | 1110 | 15300 | 16200 | 17200 |
| 140 | 9440 | 11400 | 15700 | 16700 | 17700 |
| 141 | 9580 | 11500 | 15900 | 16900 | 18000 |
| 142 | 9710 | 11700 | 16200 | 17200 | 18200 |
| 144 | 9990 | 12000 | 16600 | 17700 | 18700 |
| 146 | 10300 | 1240 | 17100 | 18200 | 一 |
| 147 | 10400 | 1250 | 17300 | 18400 | 一 |
| 148 | 10600 | 12700 | 17600 | 18700 | 一 |
| 150 | 10800 | 13100 | 18000 | 19200 | |
| 152 | 11100 | 13400 | 18500 | 19700 | |
| 154 | 1140 | 13800 | 19000 | 20200 | |
| 156 | 11700 | 14100 | 19500 | 20700 | 一 |
| 158 | 12000 | 14500 | 2000 | 21300 | 一 |
| 160 | 12300 | 14900 | 20500 | 21800 | |
