Details
Class: 6xV19

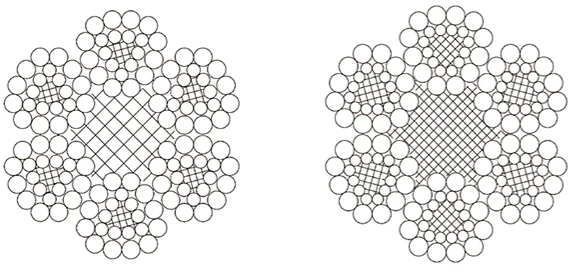

Construction:6xV21FC 6xV24FC
Application: 6xV21FC-FC Shaft hoisting
6xV24FC-FC: Shaft lifting, blast furnace hoisting, hoisting on open-slopes, etc.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | ||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||
| Minimum breaking strength (kN) | ||||||
| 14 | 73.1 | 102 | 108 | 115 | 121 | 127 |
| 16 | 95.5 | 133 | 142 | 150 | 158 | 166 |
| 18 | 121 | 168 | 179 | 190 | 201 | 210 |
| 20 | 149 | 208 | 221 | 234 | 248 | 260 |
| 22 | 181 | 252 | 268 | 284 | 300 | 314 |
| 24 | 215 | 299 | 318 | 337 | 357 | 374 |
| 26 | 252 | 351 | 374 | 396 | 418 | 439 |
| 28 | 292 | 407 | 433 | 459 | 485 | 509 |
| 30 | 336 | 468 | 497 | 527 | 560 | 580 |
| 32 | 382 | 532 | 570 | 600 | 630 | 660 |
| 34 | 431 | 600 | 640 | 680 | 720 | 750 |
| 36 | 483 | 670 | 720 | 760 | 800 | 840 |
| 38 | 539 | 750 | 800 | 850 | 890 | 940 |
| 40 | 600 | 830 | 880 | 940 | 990 | 1040 |
| 22 | 196 | 246 | 262 | 278 | 293 | 307 |
| 24 | 233 | 293 | 312 | 330 | 349 | 366 |
| 26 | 274 | 344 | 366 | 388 | 410 | 429 |
| 28 | 318 | 399 | 424 | 450 | 475 | 498 |
| 30 | 365 | 458 | 487 | 516 | 545 | 572 |
| 32 | 415 | 521 | 554 | 587 | 620 | 650 |
| 34 | 468 | 588 | 625 | 663 | 700 | 734 |
| 36 | 525 | 659 | 701 | 743 | 785 | 823 |
| 38 | 585 | 735 | 781 | 828 | 875 | 917 |
| 40 | 648 | 814 | 866 | 918 | 969 | 1020 |
| 42 | 714 | 897 | 954 | 1010 | 1070 | 1120 |
| 42 | 784 | 985 | 1050 | 1110 | 1170 | 1230 |
