Details
Class: 8x7

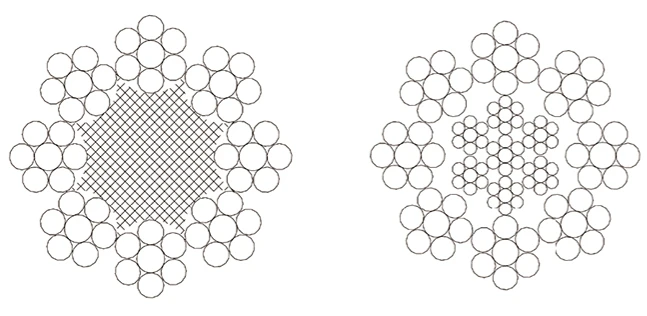

Construction:8x7-FC 8x7-IWRC
Application: lt is used in binding, floating and suspension bridge etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||||||||
| Minimum breaking load (kN) | ||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 10 | 32.7 | 39.1 | 45.7 | 56.4 | 48.6 | 60 | 51.5 | 63.5 | 54.4 | 67.1 | 57 | 70.4 |
| 11 | 39.6 | 47.3 | 55.3 | 68.2 | 58.8 | 72.5 | 62.3 | 76.9 | 65.8 | 81.2 | 69 | 85.1 |
| 12 | 47.1 | 56.3 | 65.8 | 81.2 | 70 | 86.3 | 74.2 | 91.5 | 78.4 | 96.7 | 82.1 | 101 |
| 13 | 55.3 | 66.1 | 77.2 | 95.3 | 82.1 | 101 | 87 | 107 | 92 | 113 | 96.4 | 119 |
| 14 | 64.1 | 76.6 | 89.5 | 110 | 95.3 | 118 | 101 | 125 | 107 | 132 | 112 | 138 |
| 16 | 83.7 | 100 | 117 | 144 | 124 | 153 | 132 | 163 | 139 | 172 | 146 | 180 |
| 18 | 106 | 127 | 148 | 183 | 157 | 194 | 167 | 206 | 176 | 218 | 185 | 228 |
| 20 | 131 | 156 | 183 | 225 | 194 | 240 | 206 | 254 | 218 | 269 | 228 | 281 |
| 22 | 158 | 189 | 221 | 273 | 235 | 290 | 249 | 308 | 263 | 325 | 276 | 341 |
| 24 | 188 | 225 | 263 | 325 | 280 | 345 | 297 | 366 | 313 | 387 | 329 | 405 |
| 26 | 221 | 264 | 309 | 381 | 329 | 405 | 348 | 430 | 368 | 454 | 386 | 476 |
| 28 | 256 | 307 | 358 | 442 | 381 | 470 | 404 | 498 | 427 | 526 | 447 | 552 |
| 30 | 294 | 352 | 411 | 507 | 437 | 540 | 464 | 572 | 490 | 604 | 513 | 633 |
| 32 | 335 | 400 | 468 | 577 | 498 | 614 | 527 | 651 | 557 | 687 | 584 | 721 |
| 34 | 378 | 452 | 528 | 652 | 562 | 693 | 595 | 735 | 629 | 776 | 659 | 813 |
| 36 | 424 | 507 | 592 | 730 | 630 | 777 | 668 | 824 | 705 | 870 | 739 | 912 |
