Details
Class:8x19M、8x37M

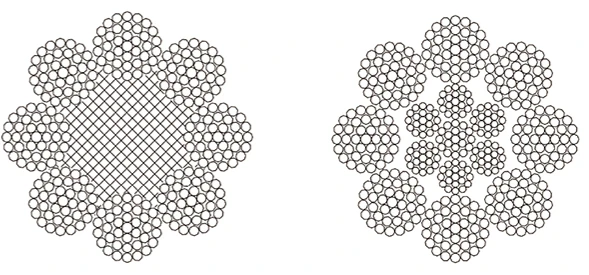

Construction:8x19M 8x37M
Application: Hoisting equipment, heavy rigging, heavy lifting machinery, andsalvage etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||||||||
| Minimum breaking load (kN) | ||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 12 | 51.3 | 60.5 | 59 | 70.1 | 62.8 | 74.5 | 66.5 | 79 | 70.3 | 83.5 | 73.7 | 87.5 |
| 13 | 60.2 | 71 | 69.3 | 82.3 | 73.7 | 87.5 | 78.1 | 93 | 82.5 | 98 | 86.5 | 103 |
| 14 | 69.8 | 82.3 | 80.3 | 95.4 | 85.4 | 101 | 90.5 | 108 | 95.7 | 114 | 100 | 119 |
| 16 | 91.1 | 108 | 105 | 125 | 112 | 133 | 118 | 140 | 125 | 148 | 131 | 156 |
| 18 | 115 | 136 | 133 | 158 | 141 | 168 | 150 | 178 | 158 | 188 | 166 | 197 |
| 20 | 142 | 168 | 164 | 195 | 174 | 207 | 185 | 219 | 195 | 232 | 205 | 243 |
| 22 | 172 | 203 | 198 | 236 | 211 | 251 | 224 | 266 | 236 | 281 | 248 | 294 |
| 24 | 205 | 242 | 236 | 280 | 251 | 298 | 266 | 316 | 281 | 334 | 295 | 350 |
| 26 | 241 | 284 | 277 | 329 | 295 | 350 | 312 | 371 | 330 | 392 | 346 | 411 |
| 28 | 279 | 329 | 321 | 382 | 342 | 406 | 362 | 430 | 383 | 454 | 401 | 476 |
| 30 | 320 | 378 | 369 | 438 | 392 | 466 | 416 | 494 | 439 | 522 | 460 | 547 |
| 32 | 365 | 430 | 420 | 498 | 446 | 530 | 473 | 562 | 500 | 594 | 524 | 622 |
| 34 | 412 | 486 | 474 | 563 | 504 | 598 | 534 | 634 | 564 | 670 | 591 | 702 |
| 36 | 461 | 544 | 531 | 631 | 565 | 671 | 599 | 711 | 633 | 751 | 663 | 787 |
| 38 | 514 | 606 | 592 | 703 | 629 | 748 | 667 | 792 | 705 | 837 | 739 | 877 |
| 40 | 570 | 672 | 656 | 779 | 697 | 828 | 739 | 878 | 781 | 930 | 818 | 972 |
| 42 | 628 | 741 | 723 | 859 | 769 | 913 | 815 | 970 | 861 | 1020 | 902 | 1070 |
| 44 | 689 | 813 | 793 | 940 | 844 | 1000 | 894 | 1060 | 945 | 1120 | 990 | 1180 |
| 46 | 753 | 889 | 867 | 1030 | 920 | 1100 | 978 | 1160 | 1030 | 1230 | 1080 | 1290 |
| 48 | 820 | 968 | 944 | 1120 | 1000 | 1190 | 1060 | 1260 | 1120 | 1340 | 1180 | 1400 |
| 50 | 890 | 1050 | 1020 | 1220 | 1090 | 1290 | 1150 | 1370 | 1220 | 1450 | 1280 | 1520 |
| 52 | 963 | 1140 | 1110 | 1320 | 1180 | 1400 | 1250 | 1480 | 1320 | 1570 | 1380 | 1640 |
| 54 | 1040 | 1220 | 1190 | 1420 | 1270 | 1510 | 1350 | 1600 | 1420 | 1690 | 1490 | 1770 |
| 56 | 1120 | 1320 | 1290 | 1530 | 1370 | 1620 | 1450 | 1720 | 1530 | 1820 | 1600 | 1910 |
| 58 | 1200 | 1410 | 1380 | 1640 | 1470 | 1740 | 1550 | 1850 | 1640 | 1950 | 1720 | 2040 |
| 60 | 1280 | 1510 | 1480 | 1750 | 1570 | 1860 | 1660 | 1980 | 1760 | 2090 | 1840 | 2190 |
| 62 | 1370 | 1610 | 1580 | 1870 | 1680 | 1990 | 1780 | 2110 | 1880 | 2230 | 1970 | 2340 |
| 64 | 1460 | 1720 | 1680 | 1990 | 1790 | 2120 | 1890 | 2250 | 2000 | 2370 | 2100 | 2490 |
| 66 | 1550 | 1830 | 1780 | 2120 | 1900 | 2260 | 2010 | 2390 | 2130 | 2530 | 2230 | 2650 |
| 68 | 1650 | 1940 | 1890 | 2250 | 2020 | 2390 | 2140 | 2540 | 2260 | 2680 | 2370 | 2810 |
| 70 | 1740 | 2060 | 2010 | 2380 | 2140 | 2540 | 2260 | 2690 | 2390 | 2840 | 2510 | 2980 |
| 72 | 1850 | 2180 | 2120 | 2520 | 2260 | 2680 | 2390 | 2840 | 2530 | 3010 | 2650 | 3150 |
| 74 | 1950 | 2300 | 2240 | 2670 | 2390 | 2830 | 2530 | 3000 | 2670 | 3170 | 2800 | 3330 |
| 76 | 2060 | 2430 | 2370 | 2810 | 2520 | 2990 | 2670 | 3170 | 2820 | 3350 | 2950 | 3510 |
| 78 | 2170 | 2560 | 2490 | 2960 | 2650 | 3150 | 2810 | 3340 | 2970 | 3530 | 3110 | 3700 |
| 80 | 2280 | 2690 | 2620 | 3110 | 2790 | 3310 | 2960 | 3510 | 3120 | 3710 | 3270 | 3890 |
| 82 | 2390 | 2820 | 2760 | 3270 | 2930 | 3480 | 3110 | 3690 | 3280 | 3900 | 3440 | 4090 |
| 84 | 2510 | 2960 | 2890 | 3430 | 3080 | 3650 | 3260 | 3870 | 3440 | 4090 | 3610 | 4290 |
| 86 | 2630 | 3110 | 3030 | 3600 | 3220 | 3830 | 3420 | 4060 | 3610 | 4290 | 3780 | 4490 |
| 88 | 2760 | 3250 | 3170 | 3770 | 3380 | 4010 | 3580 | 4250 | 3780 | 4490 | 3960 | 4710 |
| 90 | 2880 | 3400 | 3320 | 3940 | 3530 | 4190 | 3740 | 4440 | 3950 | 4700 | 4140 | 4920 |
| 92 | 3010 | 3550 | 3470 | 4120 | 3690 | 4380 | 3910 | 4640 | 4130 | 4910 | 4330 | 5140 |
| 94 | 3150 | 3710 | 3620 | 4300 | 3850 | 4570 | 4080 | 4850 | 4310 | 5120 | 4520 | 5370 |
| 96 | 3280 | 3870 | 3780 | 4490 | 4020 | 4770 | 4260 | 5060 | 4500 | 5340 | 4710 | 5600 |
| 98 | 3420 | 4030 | 3940 | 4670 | 4190 | 4970 | 4440 | 5270 | 4690 | 5570 | 4910 | 5840 |
| 100 | 3560 | 4200 | 4100 | 4870 | 4360 | 5180 | 4620 | 5490 | 4880 | 5800 | 5120 | 6080 |
| 104 | 3850 | 4540 | 4430 | 5260 | 4710 | 5600 | 5000 | 5930 | 5280 | 6270 | 5530 | 6570 |
| 108 | 4150 | 4900 | 4780 | 5680 | 5080 | 6040 | 5390 | 6400 | 5690 | 6760 | 5970 | 7090 |
