Details
Class:8x19、8x36

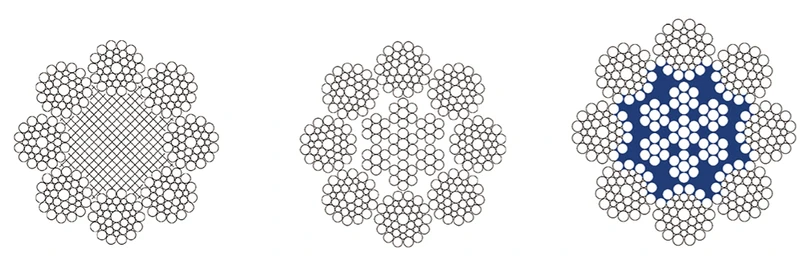

Construction:8x17S 8x19S 8x21F 8x19W 8x25F 8x26WS 8x31WS 8x29F 8x36WS 8x37FS 8x41F 8x41WS 8x46WS 8x49SWS 8x55SWS
Application: Large hoisting cranes, shipping, marine installations, and salvage, etc
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | |||||||||
| Minimum breaking load (kN) | ||||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 16 | 91.4 | 111 | 118 | 139 | 125 | 148 | 133 | 157 | 140 | 166 | 147 | 174 | 162 | 191 |
| 18 | 116 | 141 | 149 | 176 | 159 | 187 | 168 | 198 | 178 | 210 | 186 | 220 | 205 | 242 |
| 20 | 143 | 174 | 184 | 217 | 196 | 231 | 207 | 245 | 219 | 259 | 230 | 271 | 253 | 299 |
| 22 | 173 | 211 | 223 | 263 | 237 | 280 | 251 | 296 | 265 | 313 | 278 | 328 | 306 | 362 |
| 24 | 206 | 251 | 265 | 313 | 282 | 333 | 299 | 353 | 316 | 373 | 331 | 391 | 365 | 430 |
| 26 | 241 | 294 | 311 | 367 | 331 | 391 | 351 | 414 | 370 | 437 | 388 | 458 | 428 | 505 |
| 28 | 280 | 341 | 361 | 426 | 384 | 453 | 407 | 480 | 430 | 507 | 450 | 532 | 496 | 586 |
| 30 | 321 | 392 | 414 | 489 | 440 | 520 | 467 | 551 | 493 | 582 | 517 | 610 | 570 | 673 |
| 32 | 366 | 445 | 471 | 556 | 501 | 592 | 531 | 627 | 561 | 663 | 588 | 694 | 648 | 765 |
| 34 | 413 | 503 | 532 | 628 | 566 | 668 | 600 | 708 | 633 | 748 | 664 | 784 | 732 | 864 |
| 36 | 463 | 564 | 596 | 704 | 634 | 749 | 672 | 794 | 710 | 839 | 744 | 879 | 820 | 969 |
| 38 | 516 | 628 | 664 | 784 | 707 | 834 | 749 | 884 | 791 | 934 | 829 | 979 | 914 | 1080 |
| 40 | 571 | 696 | 736 | 869 | 783 | 925 | 830 | 980 | 877 | 1040 | 919 | 1090 | 1010 | 1200 |
| 42 | 630 | 767 | 811 | 958 | 863 | 1020 | 915 | 1080 | 967 | 1140 | 1010 | 1200 | 1120 | 1320 |
| 44 | 691 | 842 | 891 | 1050 | 947 | 1120 | 1000 | 1190 | 1060 | 1250 | 1110 | 1310 | 1230 | 1450 |
| 46 | 755 | 920 | 973 | 1150 | 1040 | 1220 | 1100 | 1300 | 1160 | 1370 | 1220 | 1430 | 1340 | 1580 |
| 48 | 823 | 1000 | 1060 | 1250 | 1130 | 1330 | 1190 | 1410 | 1260 | 1490 | 1320 | 1560 | 1460 | 1720 |
| 50 | 893 | 1090 | 1150 | 1360 | 1220 | 1440 | 1300 | 1530 | 1370 | 1620 | 1440 | 1700 | 1580 | 1870 |
| 52 | 965 | 1180 | 1240 | 1470 | 1320 | 1560 | 1400 | 1660 | 1480 | 1750 | 1550 | 1830 | 1710 | 2020 |
| 54 | 1040 | 1270 | 1340 | 1580 | 1430 | 1680 | 1510 | 1790 | 1600 | 1890 | 1670 | 1980 | 1850 | 2180 |
| 56 | 1120 | 1360 | 1440 | 1700 | 1530 | 1810 | 1630 | 1920 | 1720 | 2030 | 1800 | 2130 | 1980 | 2340 |
| 58 | 1200 | 1460 | 1550 | 1830 | 1650 | 1940 | 1740 | 2060 | 1840 | 2180 | 1930 | 2280 | 2130 | 2510 |
| 60 | 1290 | 1570 | 1660 | 1960 | 1760 | 2080 | 1870 | 2200 | 1970 | 2330 | 2070 | 2440 | 2280 | 2690 |
| 62 | 1440 | 1710 | 1770 | 2090 | 1880 | 2220 | 1990 | 2350 | 2110 | 2490 | 2210 | 2610 | ||
| 64 | 1540 | 1820 | 1880 | 2230 | 2000 | 2370 | 2120 | 2510 | 2240 | 2650 | 2350 | 2780 | ||
| 66 | 1630 | 1940 | 2000 | 2370 | 2130 | 2520 | 2260 | 2670 | 2390 | 2820 | 2500 | 2950 | ||
| 68 | 1730 | 2060 | 2130 | 2510 | 2260 | 2670 | 2400 | 2830 | 2530 | 2990 | 2660 | 3140 | ||
| 70 | 1840 | 2180 | 2250 | 2660 | 2400 | 2830 | 2540 | 3000 | 2680 | 3170 | 2810 | 3320 | ||
| 72 | 1940 | 2310 | 2380 | 2820 | 2540 | 3000 | 2690 | 3170 | 2840 | 3350 | 2980 | 3520 | ||
| 74 | 2050 | 2440 | 2520 | 2970 | 2680 | 3160 | 2840 | 3350 | 3000 | 3540 | 3140 | 3710 | ||
