Details
Class: 6x91N

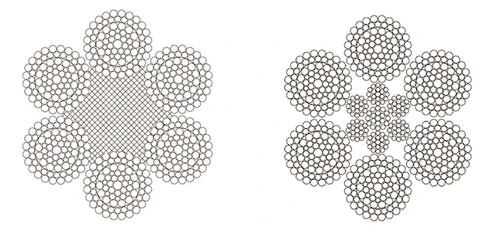

COnStrUction:6x84WSNS 6x89WSNS 6x97SWSNS 6x109SWSNS 6x111SWSNS 6x119SWSNS 6x127SWSNS
Application: Large hoisting crane, ships, offshore installations, and salvage, etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||||||||
| Minimum breaking load (kN) | ||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 80 | 2430 | 2780 | 3200 | 3480 | 3400 | 3700 | 3600 | 3920 | 3810 | 4140 | 3990 | 4340 |
| 82 | 2560 | 2920 | 3360 | 3650 | 3570 | 3890 | 3780 | 4120 | 4000 | 4350 | 4190 | 4560 |
| 84 | 2680 | 3070 | 3520 | 3830 | 3750 | 4080 | 3970 | 4320 | 4200 | 4570 | 4400 | 4790 |
| 86 | 2810 | 3220 | 3690 | 4020 | 3930 | 4270 | 4160 | 4530 | 4400 | 4790 | 4610 | 5020 |
| 88 | 2940 | 3370 | 3870 | 4210 | 4110 | 4470 | 4360 | 4740 | 4610 | 5010 | 4830 | 5250 |
| 90 | 3080 | 3520 | 4040 | 4400 | 4300 | 4680 | 4560 | 4960 | 4820 | 5240 | 5050 | 5490 |
| 92 | 3220 | 3680 | 4230 | 4600 | 4490 | 4890 | 4760 | 5180 | 5030 | 5480 | 5280 | 5740 |
| 94 | 3360 | 3840 | 4410 | 4800 | 4690 | 5110 | 4970 | 5410 | 5250 | 5720 | 5510 | 5990 |
| 96 | 3500 | 4010 | 4600 | 5010 | 4890 | 5330 | 5190 | 5640 | 5480 | 5960 | 5740 | 6250 |
| 98 | 3650 | 4180 | 4790 | 5220 | 5100 | 5550 | 5410 | 5880 | 5710 | 6210 | 5990 | 6510 |
| 100 | 3800 | 4350 | 4990 | 5430 | 5310 | 5780 | 5630 | 6120 | 5950 | 6470 | 6230 | 6780 |
| 104 | 4110 | 4700 | 5400 | 5880 | 5740 | 6250 | 6090 | 6620 | 6430 | 7000 | 6740 | 7330 |
| 108 | 4430 | 5070 | 5820 | 6340 | 6190 | 6740 | 6570 | 7140 | 6940 | 7550 | 7270 | 7910 |
| 112 | 4770 | 5460 | 6260 | 6810 | 6660 | 7250 | 7060 | 7680 | 7460 | 8120 | 7820 | 8510 |
| 116 | 5110 | 5850 | 6720 | 7310 | 7150 | 7780 | 7570 | 8240 | 8000 | 8710 | 8390 | 9130 |
| 120 | 5470 | 6260 | 7190 | 7820 | 7650 | 8320 | 8110 | 8820 | 8560 | 9320 | 8980 | 9770 |
| 124 | 6690 | 8350 | 8880 | 9420 | 9950 | |||||||
| 128 | 7130 | 8900 | 9470 | 10000 | 10600 | |||||||
| 132 | 7580 | 9470 | 10100 | 10700 | 11270 | |||||||
| 136 | 8050 | 10000 | 10700 | 11300 | 11970 | |||||||
| 140 | 8530 | 10600 | 11300 | 12000 | 12680 | |||||||
| 144 | 9020 | 11300 | 12000 | 12700 | 13420 | |||||||
| 148 | 9530 | 11900 | 12700 | 13400 | 14170 | |||||||
| 152 | 10100 | 12600 | 13300 | 14100 | 14950 | |||||||
| 156 | 10600 | 13200 | 14100 | 14900 | 15750 | |||||||
