Details
Class:6x61M

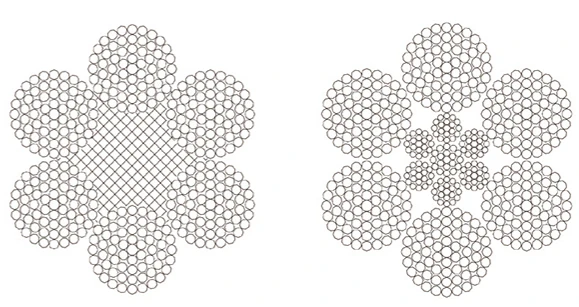

Construction:6x61M-FC6x61M-IWRC
Application: Ropes for lifting equipment, heavy-duty rigging, heavy-dutyhoisting machinery, salvage, etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||||||||
| Minimum breaking load (kN) | ||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 40 | 578 | 637 | 711 | 769 | 756 | 818 | 801 | 867 | 847 | 916 | 887 | 960 |
| 42 | 637 | 702 | 784 | 847 | 834 | 901 | 884 | 960 | 930 | 1010 | 980 | 1060 |
| 44 | 699 | 771 | 860 | 930 | 915 | 990 | 970 | 1050 | 1020 | 1110 | 1070 | 1160 |
| 46 | 764 | 842 | 940 | 1020 | 1000 | 1080 | 1060 | 1150 | 1120 | 1210 | 1170 | 1270 |
| 48 | 832 | 917 | 1020 | 1110 | 1090 | 1180 | 1150 | 1250 | 1220 | 1320 | 1280 | 1380 |
| 50 | 903 | 1000 | 1110 | 1200 | 1180 | 1280 | 1250 | 1350 | 1320 | 1430 | 1390 | 1500 |
| 52 | 976 | 1080 | 1200 | 1300 | 1280 | 1380 | 1350 | 1460 | 1430 | 1550 | 1500 | 1620 |
| 54 | 1050 | 1160 | 1300 | 1400 | 1380 | 1490 | 1460 | 1580 | 1540 | 1670 | 1620 | 1750 |
| 56 | 1130 | 1250 | 1390 | 1510 | 1480 | 1600 | 1570 | 1700 | 1660 | 1790 | 1740 | 1880 |
| 58 | 1210 | 1340 | 1490 | 1620 | 1590 | 1720 | 1690 | 1820 | 1780 | 1920 | 1870 | 2020 |
| 60 | 1300 | 1430 | 1600 | 1730 | 1700 | 1840 | 1800 | 1950 | 1910 | 2060 | 2000 | 2160 |
| 62 | 1390 | 1530 | 1710 | 1850 | 1820 | 1960 | 1930 | 2080 | 2030 | 2200 | 2130 | 2310 |
| 64 | 1480 | 1630 | 1820 | 1970 | 1940 | 2090 | 2050 | 2220 | 2170 | 2340 | 2270 | 2460 |
| 66 | 1570 | 1730 | 1820 | 2090 | 2060 | 2230 | 2180 | 2360 | 2310 | 2490 | 2420 | 2610 |
| 68 | 1670 | 1840 | 2050 | 2220 | 2190 | 2360 | 2320 | 2500 | 2450 | 2650 | 2560 | 2770 |
| 70 | 1770 | 1950 | 2180 | 2350 | 2320 | 2500 | 2450 | 2650 | 2590 | 2800 | 2720 | 2940 |
| 72 | 1870 | 2060 | 2300 | 2490 | 2450 | 2650 | 2600 | 2810 | 2740 | 2970 | 2880 | 3110 |
| 74 | 1980 | 2180 | 2430 | 2630 | 2590 | 2800 | 2740 | 2970 | 2900 | 3130 | 3040 | 3280 |
| 76 | 2090 | 2300 | 2570 | 2770 | 2730 | 2950 | 2890 | 3130 | 3060 | 3310 | 3200 | 3460 |
| 78 | 2200 | 2420 | 2700 | 2920 | 2880 | 3110 | 3050 | 3300 | 3220 | 3480 | 3370 | 3650 |
| 80 | 2310 | 2550 | 2840 | 3070 | 3020 | 3270 | 3210 | 3470 | 3390 | 3660 | 3550 | 3840 |
| 82 | 2430 | 2680 | 2990 | 3230 | 3180 | 3440 | 3370 | 3640 | 3560 | 3850 | 3730 | 4030 |
| 84 | 2550 | 2810 | 3140 | 3390 | 330 | 3610 | 3530 | 3820 | 3730 | 4040 | 3910 | 4230 |
| 86 | 2670 | 2940 | 3290 | 3550 | 3500 | 3780 | 3700 | 4010 | 3910 | 4230 | 4100 | 4440 |
| 88 | 2800 | 3080 | 3440 | 3720 | 3660 | 3960 | 3880 | 4190 | 4100 | 4430 | 4300 | 4640 |
| 90 | 2920 | 3220 | 3600 | 3890 | 3830 | 4140 | 4060 | 4390 | 4290 | 4630 | 4490 | 4860 |
| 92 | 3060 | 3370 | 3760 | 4070 | 4000 | 4330 | 4240 | 4580 | 4480 | 4840 | 4690 | 5080 |
| 94 | 3190 | 3520 | 3930 | 4240 | 4180 | 4520 | 4430 | 4790 | 4680 | 5060 | 4900 | 5300 |
| 96 | 3330 | 3670 | 4090 | 4430 | 4360 | 4710 | 4620 | 4990 | 4880 | 5270 | 5110 | 5530 |
| 98 | 3470 | 3820 | 4270 | 4610 | 4540 | 4910 | 4810 | 5200 | 5080 | 5500 | 5330 | 5760 |
| 100 | 3610 | 3980 | 4440 | 4800 | 4730 | 5110 | 5010 | 5420 | 5290 | 5720 | 5550 | 6000 |
| 104 | 3900 | 4300 | 4810 | 5200 | 5110 | 5530 | 5420 | 5860 | 5720 | 6190 | 6000 | 6490 |
| 108 | 4210 | 4640 | 5180 | 5600 | 5510 | 5960 | 5840 | 6320 | 6170 | 6670 | 6470 | 7000 |
