Details
Class: 8x91N

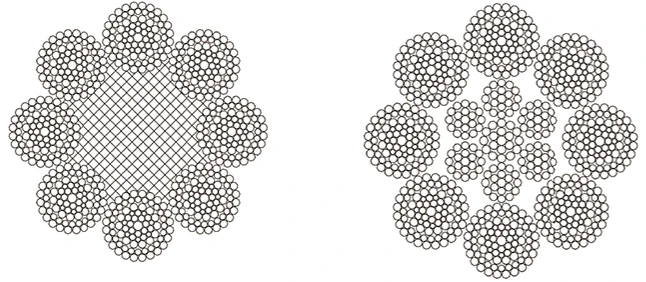

COnStrUction:8x84WSNS 8x89WSNS 8x97SWSNS 8x109SWSNS 8x111SWSNS 8x119SWSNS 8x127SWSNS
Application: Large hoisting crane, shipping, offshore installations, and salvage, etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||
| 1570 | 1670 | 1770 | ||||||
| Minimum breaking load (kN) | ||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 108 | 4320 | 5170 | 4940 | 6150 | 5260 | 6540 | 5570 | 6940 |
| 112 | 4640 | 5560 | 5320 | 6620 | 5660 | 7040 | 6000 | 7460 |
| 116 | 4980 | 5960 | 5700 | 7100 | 6070 | 7550 | 6430 | 8000 |
| 120 | 5330 | 6380 | 6100 | 7600 | 6490 | 8080 | 6880 | 8560 |
| 124 | 5690 | 6810 | 6520 | 8110 | 6930 | 8630 | 7350 | 9140 |
| 128 | 6060 | 7260 | 6950 | 8640 | 7390 | 9190 | 7830 | 9740 |
| 132 | 6450 | 7720 | 7390 | 9190 | 7860 | 9800 | 8330 | 10400 |
| 136 | 6840 | 8190 | 7840 | 9760 | 8340 | 10400 | 8840 | 11000 |
| 140 | 7250 | 8680 | 8310 | 10340 | 8840 | 11000 | 9370 | 11700 |
| 144 | 7670 | 9190 | 8790 | 10940 | 9350 | 11600 | 9910 | 12300 |
| 148 | 8100 | 9700 | 9280 | 11550 | 9880 | 12300 | 10400 | 13000 |
| 152 | 8550 | 10200 | 9790 | 12200 | 10400 | 13000 | 11000 | 13700 |
| 156 | 9000 | 10800 | 10300 | 12800 | 11000 | 13700 | 11600 | 14500 |
