Details
Class: 8x61N

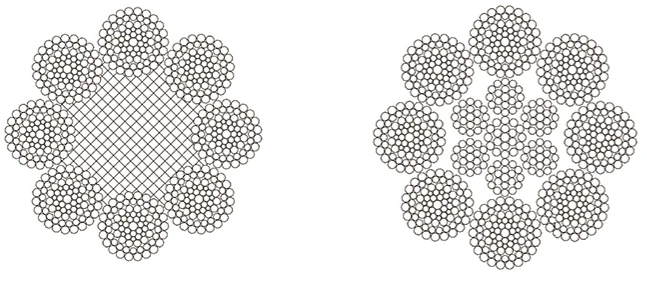

ConStruction:8x65FNS 8x69FNS 8x71WSNS 8x76WSNS 8x80WSNS
Application: Large hoisting crane, shipping, offshore installations, and salvage, etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||||||||
| Minimum breaking load (kN) | ||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 76 | 2140 | 2560 | 2450 | 3050 | 2600 | 3240 | 2760 | 3440 | 2920 | 3630 | 3060 | 3800 |
| 78 | 2250 | 2700 | 2580 | 3210 | 2740 | 3410 | 2910 | 3620 | 3070 | 3820 | 3220 | 4010 |
| 80 | 2370 | 2840 | 2710 | 3380 | 2890 | 3590 | 3060 | 3810 | 3230 | 4020 | 3390 | 4210 |
| 82 | 2490 | 2980 | 2850 | 3550 | 3030 | 3770 | 3210 | 4000 | 3390 | 4220 | 3560 | 4430 |
| 84 | 2610 | 3130 | 2990 | 3720 | 3180 | 3960 | 3370 | 4200 | 3560 | 4430 | 3730 | 4650 |
| 86 | 2740 | 3280 | 3140 | 3900 | 3330 | 4150 | 3530 | 4400 | 3730 | 4650 | 3910 | 4870 |
| 88 | 2870 | 3430 | 3280 | 4090 | 3490 | 4350 | 3700 | 4610 | 3910 | 4870 | 4100 | 5100 |
| 90 | 3000 | 3590 | 3430 | 4270 | 3650 | 4550 | 3870 | 4820 | 4090 | 5090 | 4290 | 5330 |
| 92 | 3130 | 3750 | 3590 | 4460 | 3820 | 4750 | 4040 | 5030 | 4270 | 5320 | 4480 | 5570 |
| 94 | 3270 | 3910 | 3750 | 4660 | 3980 | 4960 | 4220 | 5250 | 4460 | 5550 | 4680 | 5820 |
| 96 | 3410 | 4080 | 3910 | 4860 | 4160 | 5170 | 4400 | 5480 | 4650 | 5790 | 4880 | 6070 |
| 98 | 3550 | 4250 | 4070 | 5070 | 4330 | 5390 | 4590 | 5710 | 4850 | 6030 | 5080 | 6320 |
| 100 | 3700 | 4430 | 4240 | 5280 | 4510 | 5610 | 4780 | 5950 | 5050 | 6280 | 5290 | 6590 |
| 102 | 3850 | 4610 | 4410 | 5490 | 4690 | 5840 | 4970 | 6190 | 5250 | 6540 | 5510 | 6850 |
| 104 | 4000 | 4790 | 4580 | 5710 | 4880 | 6070 | 5170 | 6430 | 5460 | 6800 | 5720 | 7120 |
| 108 | 4320 | 5170 | 4940 | 6150 | 5260 | 6540 | 5570 | 6940 | 5890 | 7330 | ||
| 112 | 4640 | 5560 | 5320 | 6620 | 5660 | 7040 | 5990 | 7460 | 6330 | 7880 | ||
| 116 | 4980 | 5960 | 5700 | 7100 | 6070 | 7550 | 6430 | 8000 | 6790 | 8450 | ||
| 120 | 5330 | 6380 | 6100 | 7600 | 6490 | 8080 | 6880 | 8560 | 7270 | 9050 | ||
| 124 | 6810 | 8110 | 8630 | 9140 | 9660 | |||||||
| 128 | 7260 | 8640 | 9190 | 9740 | 10290 | |||||||
| 132 | 7720 | 9190 | 9780 | 10360 | 10950 | |||||||
| 136 | 8190 | 9760 | 10380 | 11000 | 11620 | |||||||
