Details
Class: 34(M)x7

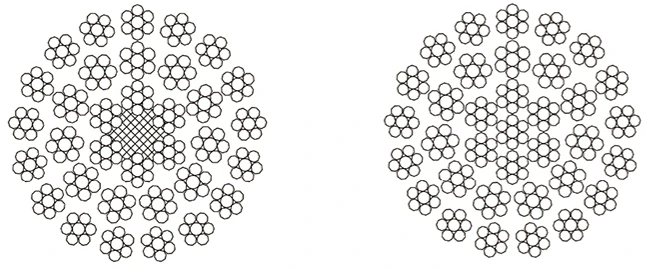

Construction:34(M)x7 36(M)x7
Application: Balance rope for vertical shaft (for interactive twist only)
| Nominal diameter (mm) | Reference weight (kg/100m) | Ropegrade | ||||||
| 1570 | 1770 | 1970 | ||||||
| Minimum breaking strength (kN) | ||||||||
| Fiber core | Steel Core | Fiber core | Steel Core | Fiber core | Steel Core | Fiber core | Steel Core | |
| 10 | 40 | 43 | 48.4 | 49.9 | 54.5 | 56.3 | 60.4 | 62.3 |
| 11 | 48.4 | 52 | 58.5 | 60.4 | 66 | 68.1 | 73 | 75.4 |
| 12 | 57.6 | 61.9 | 69.6 | 71.9 | 78.5 | 81.1 | 86.9 | 89.8 |
| 13 | 67.6 | 72.7 | 81.7 | 84.4 | 92.1 | 95.1 | 102 | 105 |
| 14 | 78.4 | 84.3 | 94.8 | 97.9 | 107 | 110 | 118 | 122 |
| 16 | 102 | 110 | 124 | 128 | 140 | 144 | 155 | 160 |
| 18 | 130 | 139 | 157 | 162 | 177 | 182 | 196 | 202 |
| 20 | 160 | 172 | 193 | 200 | 218 | 225 | 241 | 249 |
| 22 | 194 | 208 | 234 | 242 | 264 | 272 | 292 | 302 |
| 24 | 230 | 248 | 279 | 288 | 314 | 324 | 348 | 359 |
| 26 | 270 | 291 | 327 | 337 | 369 | 380 | 408 | 421 |
| 28 | 314 | 337 | 379 | 391 | 427 | 441 | 473 | 489 |
| 32 | 410 | 440 | 495 | 511 | 558 | 576 | 618 | 638 |
| 36 | 518 | 557 | 627 | 647 | 707 | 729 | 782 | 808 |
| 40 | 640 | 688 | 774 | 799 | 872 | 901 | 966 | 997 |
| 44 | 774 | 832 | 936 | 967 | 1060 | 1090 | 1170 | 1210 |
| 48 | 922 | 991 | 1110 | 1150 | 1260 | 1300 | 1390 | 1440 |
| 52 | 1082 | 1163 | 1310 | 1350 | 1470 | 1520 | 1630 | 1690 |
| 56 | 1254 | 1348 | 1520 | 1570 | 1710 | 1770 | 1890 | 1950 |
| 60 | 1440 | 1548 | 1740 | 1800 | 1960 | 2030 | 2170 | 2240 |
