Details
Class: 4xV39

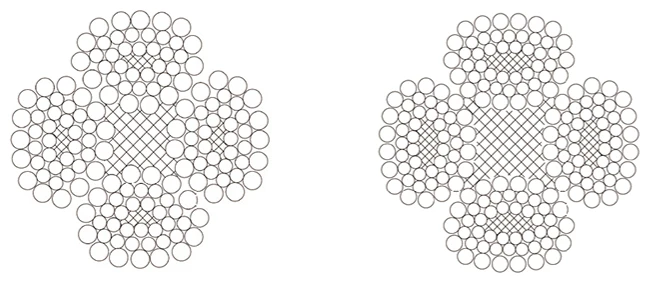

Construction::4xV39SFC-FC4xV48SFC-FC
Application: Rope for subvertical shaft, tower crane for water projects and construction, construction machinery, port handlingand shipping handling, etc.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | ||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||
| Minimum breaking strength (kN) | ||||||
| 10 | 41 | 56.5 | 60.1 | 63.7 | 67.3 | 70.6 |
| 11 | 49.6 | 68.4 | 72.7 | 77.1 | 81.5 | 85.4 |
| 12 | 59 | 81.4 | 86.6 | 91.8 | 96.9 | 102 |
| 13 | 69.3 | 95.5 | 102 | 108 | 114 | 119 |
| 14 | 80.4 | 111 | 118 | 125 | 132 | 138 |
| 16 | 105 | 145 | 154 | 163 | 172 | 181 |
| 18 | 133 | 183 | 195 | 206 | 218 | 229 |
| 20 | 164 | 226 | 240 | 255 | 269 | 282 |
| 22 | 198 | 274 | 291 | 308 | 326 | 342 |
| 24 | 236 | 326 | 346 | 367 | 388 | 406 |
| 26 | 277 | 382 | 406 | 431 | 455 | 477 |
| 28 | 321 | 443 | 471 | 500 | 528 | 553 |
| 30 | 369 | 509 | 541 | 573 | 606 | 635 |
| 32 | 420 | 579 | 616 | 652 | 689 | 723 |
| 34 | 474 | 653 | 695 | 737 | 778 | 816 |
| 36 | 531 | 732 | 779 | 826 | 872 | 914 |
| 38 | 592 | 816 | 868 | 920 | 972 | 1020 |
| 40 | 656 | 904 | 962 | 1020 | 1080 | 1130 |
| 42 | 723 | 997 | 1060 | 1120 | 1190 | 1240 |
| 44 | 794 | 1090 | 1160 | 1230 | 1300 | 1370 |
| 46 | 868 | 1200 | 1270 | 1350 | 1420 | 1490 |
| 48 | 945 | 1300 | 1390 | 1470 | 1550 | 1630 |
