Details
Class: 8xK61

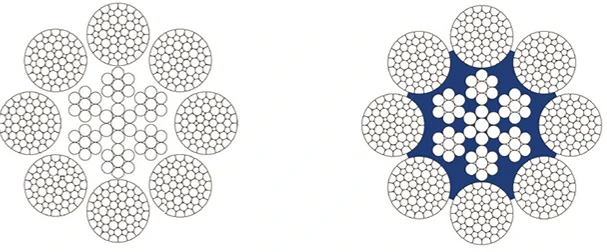

Construction:8xK61FWS 8xK64SFS
Application: Heavy-duty machinery, large-scale lifting.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | ||||
| 1570 | 1670 | 1770 | 1870 | 1970 | ||
| Minimum breaking strength (kN) | ||||||
| 70 | 2350 | 3050 | 3250 | 3440 | 3640 | 3810 |
| 72 | 2490 | 3230 | 3440 | 3640 | 3850 | 4030 |
| 74 | 2630 | 3410 | 3630 | 3850 | 4070 | 4260 |
| 76 | 2770 | 3600 | 3830 | 4060 | 4290 | 4490 |
| 78 | 2920 | 3790 | 4030 | 4280 | 4520 | 4730 |
| 80 | 3070 | 3990 | 4240 | 4500 | 4750 | 4980 |
| 82 | 3230 | 4190 | 4460 | 4720 | 4990 | 5230 |
| 84 | 3390 | 4400 | 4680 | 4960 | 5240 | 5490 |
| 86 | 3550 | 4610 | 4900 | 5200 | 5490 | 5750 |
| 88 | 3720 | 4830 | 5130 | 5440 | 5750 | 6030 |
| 90 | 3890 | 5050 | 5370 | 5690 | 6010 | 6300 |
| 92 | 4060 | 5280 | 5610 | 5950 | 6280 | 6590 |
| 94 | 4240 | 5510 | 5860 | 6210 | 6560 | 6880 |
| 96 | 4420 | 5740 | 6110 | 6480 | 6840 | 7170 |
| 98 | 4610 | 5990 | 6370 | 6750 | 7130 | 7470 |
| 100 | 4800 | 6230 | 6630 | 7030 | 7420 | 7780 |
| 102 | 4990 | 6480 | 6900 | 7310 | 7720 | 8100 |
| 104 | 5190 | 6740 | 7170 | 7600 | 8030 | 8420 |
