Details
Class:8xK19-PWRC(K) 8xK36-PWRC(K)

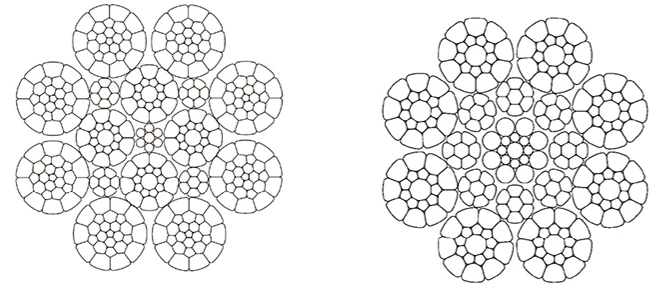

Construction:8xK19S-PWRC(K) 8xK26WS-PWRC(K) 8xK31WS-PWRC(K) 8xK36WS-PWRC(K)
Application: Traction rope for mobile crane, marine crane, tower crane, cantilever crane and grab crane. Meeting the reguirementthat wire rope doesn' t move and has a hiah breaking load.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | |||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | ||
| Minimum breaking strength (kN) | |||||||
| 12 | 73.4 | 99.5 | 106 | 112 | 118 | 124 | 137 |
| 14 | 100 | 135 | 144 | 153 | 161 | 169 | 186 |
| 16 | 131 | 177 | 188 | 199 | 211 | 221 | 243 |
| 18 | 165 | 224 | 238 | 252 | 267 | 279 | 308 |
| 20 | 204 | 276 | 294 | 312 | 329 | 345 | 380 |
| 22 | 247 | 334 | 356 | 377 | 398 | 417 | 460 |
| 24 | 294 | 398 | 423 | 449 | 474 | 497 | 547 |
| 26 | 345 | 467 | 497 | 526 | 556 | 583 | 642 |
| 28 | 400 | 542 | 576 | 611 | 645 | 676 | 745 |
| 30 | 459 | 622 | 661 | 701 | 741 | 776 | 855 |
| 32 | 522 | 707 | 752 | 797 | 843 | 883 | 973 |
| 34 | 590 | 799 | 849 | 900 | 951 | 997 | 1010 |
| 36 | 661 | 895 | 952 | 1009 | 1070 | 1120 | 1230 |
| 38 | 736 | 998 | 1060 | 1120 | 1190 | 1250 | 1370 |
| 40 | 816 | 1110 | 1180 | 1250 | 1320 | 1380 | 1520 |
| 42 | 900 | 1220 | 1300 | 1370 | 1450 | 1520 | 1680 |
| 44 | 987 | 1340 | 1420 | 1510 | 1590 | 1670 | 1840 |
| 46 | 1080 | 1460 | 1550 | 1650 | 1740 | 1820 | 2010 |
| 48 | 1180 | 1590 | 1690 | 1790 | 1900 | 1990 | 2190 |
| 50 | 1280 | 1730 | 1840 | 1950 | 2060 | 2160 | 2380 |
| 52 | 1380 | 1870 | 1990 | 2110 | 2220 | 2330 | 2570 |
| 54 | 1490 | 2010 | 2140 | 2270 | 2400 | 2510 | 2770 |
| 56 | 1600 | 2170 | 2300 | 2440 | 2580 | 2700 | 2980 |
| 58 | 1720 | 2320 | 2470 | 2620 | 2770 | 2900 | 3200 |
| 60 | 1840 | 2490 | 2650 | 2800 | 2960 | 3100 | 3420 |
