Details
Class:8xK19、8xK36

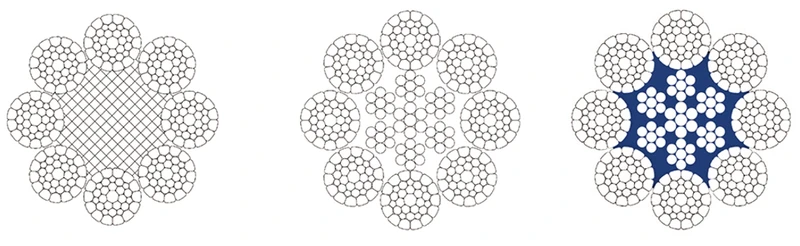

Construction:8xK19S 8xK26WS 8xK31WS 8xK36WS 8xK41WS 8xK46WS 8xK49SWS 8xK55SWS
Application: Applied to Variable amplitude rope on mobile crane, vessel crane and grab bucket crane. And can beused as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc. Also applicable tomulti-multiplying power system with smaller hoisting height, and double-reel system with matched left-hand andright-hand pairs. For the use of blast furnace, oil driling, ropeways, excavator, and metallurgical equipment, etc.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | |||||||||
| Minimum breaking load (kN) | ||||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 10 | 40.5 | 48.5 | 51.8 | 65.155 | 55.1 | 69.3 | 58.4 | 73.5 | 61.7 | 77.6 | 64.7 | 81.34 | 71.3 | 89.6 |
| 12 | 58.3 | 69.8 | 74.6 | 93.8 | 79.4 | 99.8 | 84.1 | 106 | 88.9 | 112 | 93.1 | 117 | 103 | 129 |
| 14 | 79.4 | 95.1 | 102 | 128 | 108 | 136 | 114 | 144 | 121 | 152 | 127 | 159 | 140 | 176 |
| 16 | 104 | 124 | 133 | 167 | 141 | 177 | 150 | 188 | 158 | 199 | 166 | 208 | 182 | 229 |
| 18 | 131 | 157 | 168 | 211 | 179 | 225 | 189 | 238 | 200 | 251 | 210 | 264 | 231 | 290 |
| 20 | 162 | 194 | 207 | 261 | 220 | 277 | 234 | 294 | 247 | 310 | 259 | 325 | 285 | 359 |
| 22 | 196 | 235 | 251 | 315 | 267 | 335 | 283 | 356 | 299 | 376 | 313 | 394 | 345 | 434 |
| 24 | 233 | 279 | 298 | 375 | 317 | 399 | 336 | 423 | 355 | 447 | 373 | 469 | 411 | 516 |
| 26 | 274 | 328 | 350 | 440 | 373 | 469 | 395 | 497 | 417 | 525 | 437 | 550 | 482 | 606 |
| 28 | 318 | 380 | 406 | 511 | 432 | 543 | 458 | 576 | 484 | 608 | 507 | 638 | 559 | 703 |
| 30 | 365 | 437 | 466 | 586 | 496 | 624 | 526 | 661 | 555 | 698 | 582 | 732 | 642 | 807 |
| 32 | 415 | 497 | 531 | 667 | 564 | 710 | 598 | 752 | 632 | 795 | 662 | 833 | 730 | 918 |
| 34 | 468 | 561 | 599 | 753 | 637 | 801 | 675 | 849 | 713 | 897 | 748 | 940 | 824 | 1040 |
| 36 | 525 | 629 | 671 | 844 | 714 | 898 | 757 | 952 | 800 | 1010 | 838 | 1050 | 924 | 1160 |
| 38 | 585 | 700 | 748 | 941 | 796 | 1000 | 843 | 1060 | 891 | 1120 | 934 | 1170 | 1030 | 1290 |
| 40 | 648 | 776 | 829 | 1040 | 882 | 1110 | 935 | 1180 | 987 | 1240 | 1030 | 1300 | 1140 | 1430 |
| 42 | 714 | 856 | 914 | 1150 | 972 | 1220 | 1030 | 1300 | 1090 | 1370 | 1140 | 1430 | 1260 | 1580 |
| 44 | 784 | 939 | 1000 | 1260 | 1070 | 1340 | 1130 | 1420 | 1190 | 1500 | 1250 | 1570 | 1380 | 1740 |
| 46 | 857 | 1030 | 1100 | 1380 | 1170 | 1470 | 1240 | 1550 | 1310 | 1640 | 1370 | 1720 | 1510 | 1900 |
| 48 | 933 | 1120 | 1190 | 1500 | 1270 | 1600 | 1350 | 1690 | 1420 | 1790 | 1490 | 1870 | 1640 | 2070 |
| 50 | 1010 | 1210 | 1300 | 1630 | 1380 | 1730 | 1460 | 1840 | 1540 | 1940 | 1620 | 2030 | 1780 | 2240 |
| 52 | 1100 | 1310 | 1400 | 1760 | 1490 | 1870 | 1580 | 1990 | 1670 | 2100 | 1750 | 2200 | 1930 | 2420 |
| 54 | 1180 | 1410 | 1510 | 1900 | 1610 | 2020 | 1700 | 2140 | 1800 | 2260 | 1890 | 2370 | 2080 | 2610 |
| 56 | 1270 | 1520 | 1620 | 2040 | 1730 | 2170 | 1830 | 2300 | 1940 | 2430 | 2030 | 2550 | 2240 | 2810 |
| 58 | 1360 | 1630 | 1740 | 2190 | 1850 | 2330 | 1960 | 2470 | 2080 | 2610 | 2180 | 2740 | 2400 | 3020 |
