Details

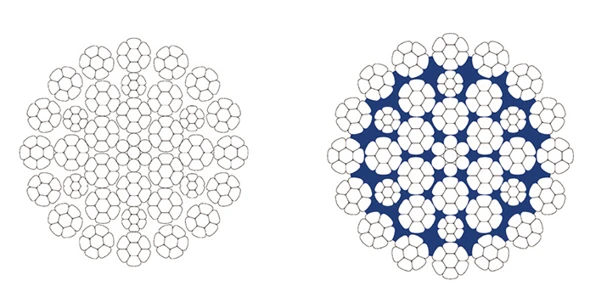

Class: 35(W)xK7
Construction:35(W)xK7 40W)xK7 38(W)xK7
Application: lifting rope for mobile crane, vessel crane, tower crane, cantilever crane, bridge crane, pile driver, and rotary driling rigsApplied to the condition where one end can rotate freely and can lift to a relatively large height.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | |||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | ||
| Minimum breaking strength (kN) | |||||||
| 12 | 73.4 | 94 | 100 | 106 | 112 | 117 | 129 |
| 14 | 100 | 128 | 136 | 144 | 152 | 159 | 176 |
| 16 | 131 | 167 | 177 | 188 | 199 | 208 | 229 |
| 18 | 165 | 211 | 225 | 238 | 251 | 264 | 290 |
| 20 | 204 | 261 | 277 | 294 | 310 | 325 | 359 |
| 22 | 247 | 315 | 335 | 356 | 376 | 394 | 434 |
| 24 | 294 | 375 | 399 | 423 | 447 | 469 | 516 |
| 26 | 345 | 440 | 469 | 497 | 525 | 550 | 606 |
| 28 | 400 | 511 | 543 | 576 | 608 | 638 | 703 |
| 30 | 459 | 586 | 624 | 661 | 698 | 732 | 807 |
| 32 | 522 | 667 | 710 | 752 | 795 | 833 | 918 |
| 34 | 590 | 753 | 801 | 849 | 897 | 940 | 1040 |
| 36 | 661 | 844 | 898 | 952 | 1010 | 1050 | 1160 |
| 38 | 736 | 941 | 1000 | 1060 | 1120 | 1170 | 1290 |
| 40 | 816 | 1040 | 1110 | 1180 | 1240 | 1300 | 1430 |
| 42 | 900 | 1150 | 1220 | 1300 | 1370 | 1430 | 1580 |
| 44 | 987 | 1260 | 1340 | 1420 | 1500 | 1570 | 1740 |
| 46 | 1079 | 1380 | 1470 | 1550 | 1640 | 1720 | 1900 |
| 48 | 1175 | 1500 | 1600 | 1690 | 1790 | 1870 | 2070 |
| 50 | 1280 | 1630 | 1730 | 1840 | 1940 | 2030 | 2240 |
| 52 | 1380 | 1760 | 1870 | 1990 | 2100 | 2200 | 2420 |
| 54 | 1487 | 1900 | 2020 | 2140 | 2260 | 2370 | 2610 |
| 56 | 1599 | 2040 | 2170 | 2300 | 2430 | 2550 | 2810 |
| 58 | 1716 | 2190 | 2330 | 2470 | 2610 | 2740 | 3020 |
| 60 | 1840 | 2350 | 2490 | 2640 | 2790 | 2930 | 3230 |
