Details
Class:18xK7 18xK19

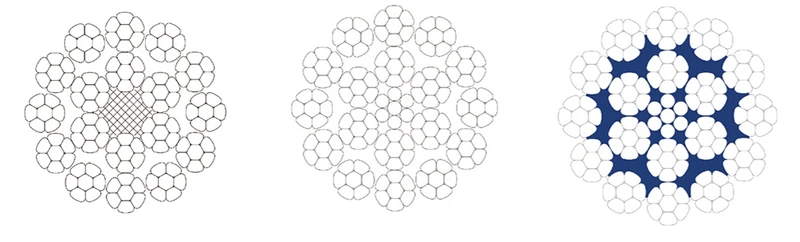

Construction:18xK718xK19S
Application: Lifting rope for mobile crane, vessel crane, tower crane, cantilever crane, bridge crane, pile driver, and rotarydriling rigs. Applied to the condition where one end can rotate freely and can lift to a relatively large height.
| Nominal diameter | Reference
weight (kg/100m) |
Rope grade | ||||||||||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | |||||||||
| Minimum breaking load (kN) | ||||||||||||||
| Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | Fiber-coresteel wirerope | Steel-coresteel wirerope | |
| 14 | 83.7 | 90.2 | 108 | 114 | 115 | 121 | 121 | 128 | 128 | 136 | 134 | 142 | 148 | 157 |
| 16 | 109 | 118 | 141 | 149 | 150 | 158 | 159 | 168 | 168 | 177 | 176 | 186 | 194 | 205 |
| 18 | 138 | 149 | 178 | 188 | 189 | 200 | 201 | 212 | 212 | 224 | 222 | 235 | 245 | 259 |
| 20 | 171 | 184 | 220 | 232 | 234 | 247 | 248 | 262 | 262 | 277 | 274 | 290 | 302 | 320 |
| 22 | 207 | 223 | 266 | 281 | 283 | 299 | 300 | 317 | 317 | 335 | 332 | 351 | 366 | 387 |
| 24 | 246 | 265 | 317 | 335 | 337 | 356 | 357 | 377 | 377 | 399 | 395 | 418 | 435 | 460 |
| 26 | 289 | 311 | 371 | 393 | 395 | 418 | 419 | 443 | 442 | 468 | 464 | 490 | 511 | 540 |
| 28 | 335 | 361 | 431 | 455 | 458 | 484 | 486 | 513 | 513 | 542 | 538 | 569 | 593 | 627 |
| 30 | 384 | 414 | 495 | 523 | 526 | 556 | 558 | 589 | 589 | 623 | 617 | 653 | 680 | 719 |
| 32 | 437 | 471 | 563 | 595 | 599 | 633 | 634 | 671 | 670 | 709 | 702 | 743 | 774 | 818 |
| 34 | 494 | 532 | 635 | 672 | 676 | 714 | 716 | 757 | 757 | 800 | 793 | 838 | 874 | 924 |
| 36 | 553 | 596 | 712 | 753 | 758 | 801 | 803 | 849 | 848 | 897 | 889 | 940 | 980 | 1040 |
| 38 | 617 | 664 | 793 | 839 | 844 | 892 | 895 | 950 | 950 | 1000 | 990 | 1050 | 1090 | 1150 |
| 40 | 683 | 736 | 879 | 929 | 935 | 990 | 990 | 1050 | 1050 | 1110 | 1100 | 1160 | 1210 | 1280 |
| 42 | 753 | 811 | 970 | 1020 | 1030 | 1090 | 1090 | 1160 | 1150 | 1220 | 1210 | 1280 | 1330 | 1410 |
| 44 | 827 | 891 | 1060 | 1120 | 1130 | 1200 | 1200 | 1270 | 1270 | 1340 | 1330 | 1400 | 1460 | 1550 |
| 46 | 904 | 973 | 1160 | 1230 | 1240 | 1310 | 1310 | 1390 | 1380 | 1460 | 1450 | 1530 | 1600 | 1690 |
| 48 | 984 | 1060 | 1270 | 1340 | 1350 | 1420 | 1430 | 1510 | 1510 | 1590 | 1580 | 1670 | 1740 | 1840 |
| 50 | 1070 | 1150 | 1370 | 1450 | 1460 | 1540 | 1550 | 1640 | 1640 | 1730 | 1720 | 1810 | 1890 | 2000 |
| 52 | 1150 | 1240 | 1490 | 1570 | 1580 | 1670 | 1680 | 1770 | 1770 | 1870 | 1850 | 1960 | 2040 | 2160 |
| 54 | 1250 | 1340 | 1600 | 1690 | 1700 | 1800 | 1810 | 1910 | 1910 | 2020 | 2000 | 2110 | 2200 | 2330 |
| 56 | 1340 | 1440 | 1720 | 1820 | 1830 | 1940 | 1940 | 2050 | 2050 | 2170 | 2150 | 2270 | 2370 | 2510 |
| 58 | 1440 | 1550 | 1850 | 1950 | 1970 | 2080 | 2080 | 2200 | 2200 | 2330 | 2310 | 2440 | 2540 | 2690 |
| 60 | 1540 | 1660 | 1980 | 2090 | 2100 | 2220 | 2230 | 2360 | 2360 | 2490 | 2470 | 2610 | 2720 | 2880 |
