Details
Class: 24(W)xK7

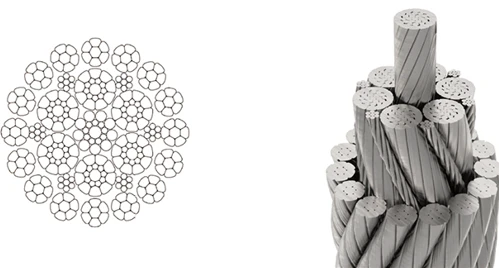

Construction:15xK7-IWRC 16xK7-IWRC
Application: Lifting rope for mobile crane, vessel crane, tower cranecantilever crane, bridge crane, pile driver, and rotary drilling rigs. Appliedto the condition where one end can rotate freely and can lift to arelatively large height.
| Nominal diameter(mm) | Reference weight(kg/100m) | Rope grade | |||||
| 1570 | 1670 | 1770 | 1870 | 1970 | 2160 | ||
| Minimum breaking strength (kN) | |||||||
| 20 | 192 | 257 | 274 | 290 | 307 | 321 | 354 |
| 22 | 232 | 312 | 331 | 351 | 371 | 389 | 429 |
| 24 | 276 | 371 | 394 | 418 | 442 | 463 | 510 |
| 26 | 324 | 435 | 463 | 491 | 518 | 543 | 599 |
| 28 | 376 | 505 | 537 | 569 | 601 | 630 | 694 |
| 30 | 432 | 579 | 616 | 653 | 690 | 723 | 797 |
| 32 | 492 | 659 | 701 | 743 | 785 | 823 | 907 |
| 34 | 555 | 744 | 792 | 839 | 886 | 929 | 1020 |
| 36 | 622 | 834 | 887 | 941 | 990 | 1040 | 1150 |
| 38 | 693 | 930 | 990 | 1050 | 1110 | 1160 | 1280 |
| 40 | 768 | 1030 | 1100 | 1160 | 1230 | 1290 | 1420 |
| 42 | 847 | 1140 | 1210 | 1280 | 1350 | 1420 | 1560 |
| 44 | 929 | 1250 | 1330 | 1400 | 1480 | 1560 | 1710 |
| 46 | 1020 | 1360 | 1450 | 1540 | 1620 | 1700 | 1880 |
| 48 | 1110 | 1480 | 1580 | 1670 | 1770 | 1850 | 2040 |
| 50 | 1200 | 1610 | 1710 | 1810 | 1920 | 2010 | 2210 |
| 52 | 1300 | 1740 | 1850 | 1960 | 2070 | 2170 | 2390 |
| 54 | 1400 | 1880 | 2000 | 2120 | 2240 | 2340 | 2580 |
| 56 | 1510 | 2020 | 2150 | 2280 | 2400 | 2520 | 2780 |
| 58 | 1610 | 2170 | 2300 | 2440 | 2580 | 2700 | 2980 |
| 60 | 1730 | 2320 | 2460 | 2610 | 2760 | 2890 | 3190 |
